ASTM A312 A213 A269 A789 Seamless Stainless Steel Tubing

Ask Lasest Price
Brand Name :	Sindara
Certification :	ISO 9001, ISO 14001, ISO 45001, CE
Payment Terms :	L/C, T/T
Supply Ability :	500 tons per day
Delivery Time :	20

Add to Cart

Product Details
Company Profile

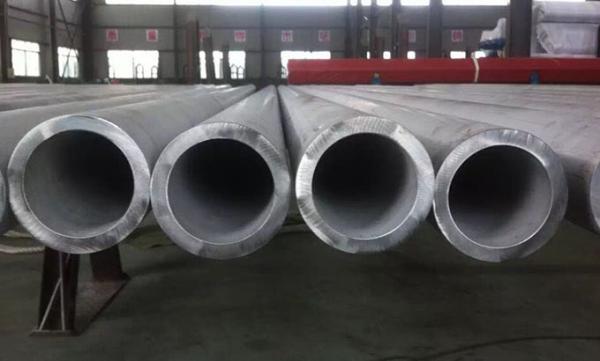

ASTM A312 A213 A269 A789 Seamless Stainless Steel Tubing

Description

Outer Diameter(OD): 6mm to 762mm

Wall Thickness(WT): 0.5mm - 65mm

LENGTH:5.8/6/11.8/12m

Pipe Standard:ASTM A312/A213/A269/B673/B674/B677/B675/B676/B690/A789/A790/A928

ASME SB163/SB423/SB444/SB622/SB677

Material:

300series:301,304,304L,,309,309S,310,310S,316,316L,321,347,347H;

400series:410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C.

Duplex:S31803, S32250, S32750, S32760, S31500, 32001. S32003, S32304.

Nickele bass alloy: N08800,N08810,N08811,N08825,N06625

Other special: S31254,N08367,N08904

Titanium alloy: TA1; TA2; TA3; TA9

Process:Cold drawn, Cold rolled, Precision Rolled; Hot Rolled;

Finish:Pickled, bright annealing, polished;

Application:Chemical, Food and beverage,Marine,Mining,Oil and gas, Pharmaceutical, Petrochemical, Power generation,Renewable energy, offshore engineering, ship building, paper industry, water treatment, HAVC system, boilers, heat exchangers, Aviation, funiture, OEM, Construction, Sanitary etc

Specification

Outside Diameter NPS	Outside Diameter (mm)	Nominal Wall Thickness (mm)
		ASME B36.19M				ASME B36.10M
		SCH 5S	SCH 10S	SCH 40S	SCH 80S	SCH 5	SCH 10	SCH 20	STD	XS
1/4	13.72	—	1.65	2.24	3.02		1.65	—	2.24	3.02
3/8	17.15	—	1.65	2.31	3.2		1.65	—	2.31	3.2
1/2	21.34	1.65	2.11	2.77	3.73	1.65	2.11	—	2.77	3.73
3/4	26.67	1.65	2.11	2.87	3.91	1.65	2.11	—	2.87	3.91
1	33.4	1.65	2.77	3.38	4.55	1.65	2.77	—	3.38	4.55
1 1/4	42.16	1.65	2.77	3.56	4.85	1.65	2.77	—	3.56	4.85
1 1/2	48.26	1.65	2.77	3.68	5.08	1.65	2.77	—	3.68	5.08
2	60.33	1.65	2.77	3.91	5.54	1.65	2.77	—	3.91	5.54
2 1/2	73.03	2.11	3.05	5.16	7.01	2.11	3.05	—	5.16	7.01
3	88.9	2.11	3.05	5.49	7.62	2.11	3.05	—	5.49	7.62
3 1/2	101.6	2.11	3.05	5.74	8.08	2.11	3.05	—	5.74	8.08
4	114.3	2.11	3.05	6.02	8.56	2.11	3.05	—	6.02	8.56
5	141.3	2.77	3.4	6.55	9.53	2.77	3.4	—	6.55	9.53
6	168.28	2.77	3.4	7.11	10.97	2.77	3.4	—	7.11	10.97
8	219.08	2.77	3.76	8.18	12.7	2.77	3.76	6.35	8.18	12.7
10	273.05	3.4	4.19	9.27	12.7	3.4	4.19	6.35	9.27	12.7
12	323.85	3.96	4.57	9.53	12.7	3.96	4.57	6.35	9.53	12.7
14	355.6	3.96	4.78	9.53	12.7	3.96	6.35	7.92	9.53	12.7
16	406.4	4.19	4.78	9.53	12.7	4.19	6.35	7.92	9.53	12.7
18	457.2	4.19	4.78	9.53	12.7	4.19	6.35	7.92	9.53	12.7
20	508	4.78	5.54	9.53	12.7	4.78	6.35	9.53	9.53	12.7
22	558.8	4.78	5.54			4.78	6.35	9.53	9.53	12.7
24	609.6	5.54	6.35	9.53	12.7	5.54	6.35	9.53	9.53	12.7
26	660.4	—	—	—	—	—	7.92	12.7	9.53	12.7
28	711.2	—	—	—	—	—	7.92	12.7	9.53	12.7
30	762	6.35	7.92	—	6.35	—	7.92	12.7	9.53	12.7
32	812.8	Thinkness: 8.63-30mm

Standard

Stainless steel seamless pipe Chemical Component

Type	Grade	Grade	Chemical Component %
			C	Cr	Ni	Mn	P	S	Mo	Si	Cu	N	Other
Austenitic	201	SUS201	≤0.15	16.00-18.00	3.50-5.50	5.50－7.50	≤0.060	≤0.030	-	≤1.00	-	≤0.25	-
	304	1.4301	≤0.07	17.00-19.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	304L	1.4307	≤0.030	18.00-20.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	304H	1.4948	0.04-0.10	18.00-20.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	309	1.4828	≤0.20	22.00-24.00	12.00-15.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	309S	*	≤0.08	22.00-24.00	12.00-15.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	310	1.4842	≤0.25	24.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	≤1.50	-	-	-
	310S	*	≤0.08	24.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	≤1.50	-	-	-
	314	1.4841	≤0.25	23.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	1.50-3.00	-	-	-
	316	1.4401	≤0.08	16.00-18.50	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	-	-
	316L	1.4404	≤0.030	16.00-18.00	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	-	-
	316Ti	1.4571	≤0.08	16.00-18.00	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	0.1	Ti5(C+N) ~0.70
	317	*	≤0.08	18.00-20.00	11.00-15.00	≤2.00	≤0.045	≤0.030	3.00-4.00	≤1.00	-	0.1	-
	317L	1.4438	≤0.03	18.00-20.00	11.00-15.00	≤2.00	≤0.045	≤0.030	3.00-4.00	≤1.00	-	0.1	-
	321	1.4541	≤0.08	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Ti5(C+N) ~0.70
	321H	*	0.04-0.10	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Ti5(C+N) ~0.70
	347	1.4550	≤0.08	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Nb≥10*C% -1.10
	347H	1.494	0.04-0.10	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Nb≥10*C% -1.10
	xm-19	Nitronic50	≤0.06	20.50-23.50	11.50-13.50	4.0-6.0	≤0.045	≤0.030	1.50-3.00	≤1.00	-	0.2-0.4	Nb:0.10-0.30 V:0.10-0.30
	904L	N08904	≤0.02	19.0-23.0	23.0-28.0	4.0-5.0	≤0.045	≤0.035		≤1.00		0.1	Cu:1.0-2.0
Duplex	2205	S32205	≤0.03	22.0-23.0	4.5-6.5	≤2.00	≤0.030	≤0.020	3.0-3.5	≤1.00	-	0.14-0.20
	2507	S32750	≤0.03	24.0-26.0	6.0-8.0	≤1.20	≤0.035	≤0.020	3.0-5.0	≤0.80	0.5	0.24-0.32
	*	S32760	≤0.03	24.0-26.0	6.0-8.0	≤1.00	≤0.030	≤0.010	3.0-4.0	≤1.00	0.5-1.00	0.2-0.3
	2304	S32304	≤0.03	21.5-24.5	3.0-5.5	≤2.50	≤0.040	≤0.030	0.05-0.6	≤1.00	0.05-0.6	0.05-0.2
	329	1.4460	≤0.08	23.00-28.00	2.00-5.00	≤1.00	≤0.040	≤0.030	1.00-2.00	≤0.75	-	-
Ferrite	409	S40900	≤0.03	10.50-11.70	0.5	≤1.00	≤0.040	≤0.020	-	≤1.00	-	≤0.030	Ti6(C+N) ~0.50 Nb:0.17
	430	1Cr17	≤0.12	16.00-18.00	-	≤1.0	≤0.040	≤0.030	-	≤1.0	-	-	-
	446	S44600	≤0.20	23.00-27.00	0.75	≤1.5	≤0.040	≤0.030	1.50-2.50	≤1.00	-	≤0.25	-
Martensite	410	1Cr13	0.08-0.15	11.50-13.50	0.75	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	420	2Cr13	≥0.15	12.00-14.00	-	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	440C	11Cr17	0.95-1.20	16.00-18.00	-	≤1.00	≤0.040	≤0.030	0.75	≤1.00	-	-	-
PH	630	17-4PH	≤0.07	15.00-17.50	3.00-5.00	≤1.00	≤0.035	≤0.030	-	≤1.00	3.00-5.00	-	Nb 0.15-0.45
	631	17-7PH	≤0.09	16.00-18.00	6.50-7.50	≤1.00	≤0.035	≤0.030	-	≤1.00	≤0.50	-	Al 0.75-1.50
	632	15-5PH	≤0.09	14.00-16.00	3.50-5.50	≤1.00	≤0.040	≤0.030	2.00-3.00	≤1.00	2.5-4.5	-	Al 0.75-1.50

Grade	Tensile Strength	Yeild Point	EL. Min(%)	Rockwell
	Min(Mpa)	Min(Mpa)		Max
TP 304	515	205	35	90
TP 304H	550	240	35	90
TP 304L	485	170	35	90
TP 309S	515	205	35	90
TP 310S	515	205	35	90
TP 316	515	205	35	90
TP 316L	485	170	35	90
TP 316Ti	515	205	35	90
TP 317	515	205	35	90
TP 321	515	205	35	90
TP 321H	515	205	35	90
TP 347	515	205	35	90
TP 347H	515	205	35	90

Process

ASTM A312 A213 A269 A789 Seamless Stainless Steel Tubing

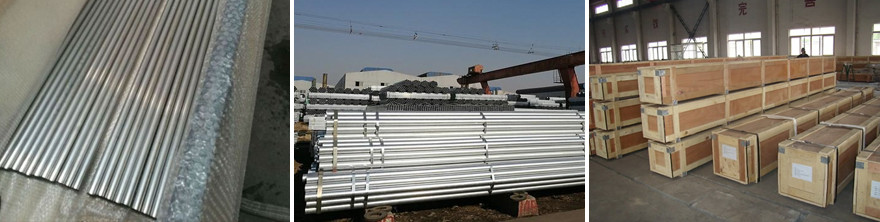

Packing

ASTM A312 A213 A269 A789 Seamless Stainless Steel Tubing
