    1/2 Inch - 48 Inch Pipe Flanges Welding Neck / Slip On / Socket Welding Flange

    Ask Lasest Price
    Brand Name : Sindara
    Certification : ISO 9001, ISO 14001, ISO 45001, CE
    Payment Terms : L/C, D/P, T/T, OA
    Delivery Time : within 10-30 days and depend on your order quantity
    • Product Details
    • Company Profile

    1/2 Inch - 48 Inch Pipe Flanges Welding Neck / Slip On / Socket Welding Flange

    Description

    Size:OD: DN15- DN2000 (1/2''- 80'')
    Type:welding neck, slip on, blind, socket welding, threaded, lap-joint
    Pressure:150#, 300#, 600#,900#,1500#, 2500#
    Material:carbon steel A105, C22.8, S235, S235JR, P235GH,SS400,37.2
    Stainless Steel 304/L,316/L,321,310S,347H,1.4301, 1.4404
    ASTM A234 WP1/5/9/11/12/22/91
    Duplex stainless steel:UNS31803, SAF2205, UNS32205, UNS31500
    Coating:Rust-proof oil, cold and hot galvanize
    Pipe Flanges, Flanges Fittings

    Slip-on pipe flanges

    Slip-on pipe flanges actually slip over the pipe. These pipe flanges are typically machined with an inside diameter of the pipe flange slightly larger than the outside diameter of the pipe. This allows the flange to slideover the pipe but to still have a somewhat snug fit. Slip-on pipe flanges are secured to the pipe with a fillet weld at the top and the bottom of the slip-on pipe flanges. These pipe flanges are also further catagorized as a ring or a hub.

    Weld neck pipe flanges

    Weld neck pipe flanges attach to the pipe by welding the pipe to the neck of the pipe flange. The allows for the transfer of stress from the weld neck pipe flanges to the pipe itself. This also reduces high stress concentration at the base of the hub of the weld neck pipe flanges. Weld neck pipe flanges are often used for high pressure applications. The inside diameter of a weld neck pipe flange is machined to match the inside diameter of the pipe.

    Blind pipe flanges

    Blind pipe flanges are pipe flanges used to seal the end of a piping system or pressure vessel openings to prevent flow. Blind pipe flanges are commonly used for pressure testing the flow of liquid or gas through a pipe or vessel. Blind pipe flanges also allow easy access to the pipe in the event that work must be done inside the line. Blind pipe flanges are often used for high pressure applications. Slip on Pipe flanges with a hub have published specifications that range from 1/2" thru 96".

    Threaded pipe flanges

    Threaded pipe flanges are similar to slip-on pipe flanges except the bore of threaded pipe flange has tapered threads. Threaded pipe flanges are used with pipes that have external threads. The benefit of these pipe flanges is that it can be attached without welding. Threaded pipe flanges are often used for small diameter, high pressure requirements. Slip on Pipe flanges with a hub have published specifications that range from 1/2" thru 24".

    Socket-weld pipe flanges

    Socket-weld pipe flanges are typically used on smaller sizes of high pressure pipes. These pipe flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe. Slip on Pipe flanges with a hub have published specifications that range from 1/2" thru 24".

    Specification

    CLASS 150 According to ASTM A/SA-105; ANSI B16.5

    Nominal

    Pipe

    Size

    Outside

    Diam. of

    Flange (O)

    Thick.

    of

    Flange (C)

    Diam.

    of

    Raised Face (R)

    Diam.

    of Hub

    at Base (X)

    Length

    thru Hub

    (Y)

    Min.

    Thread

    Length

    (T)

    Min.

    Counter

    Bore (Q)

    No. of

    Holes

    Diam. of

    Holes

    Diam. of

    Bolts

    Diam.

    of Bolt

    Circle

    Approx.

    Weight

    (in Pounds)
    ½ 3.5 0.44 1.38 1.19 0.62 0.62 — 4 0.62 0.5 2.38 1
    ¾ 3.88 0.5 1.69 1.5 0.62 0.62 — 4 0.62 0.5 2.75 2
    1 4.25 0.56 2 1.94 0.69 0.69 — 4 0.62 0.5 3.12 2
    1 ¼ 4.62 0.62 2.5 2.31 0.81 0.81 — 4 0.62 0.5 3.5 3
    1 ½ 5 0.69 2.88 2.56 0.88 0.88 — 4 0.62 0.5 3.88 3
    2 6 0.75 3.62 3.06 1 1 — 4 0.75 0.62 4.75 5
    2 ½ 7 0.88 4.12 3.56 1.12 1.12 — 4 0.75 0.62 5.5 7
    3 7.5 0.94 5 4.25 1.19 1.19 — 4 0.75 0.62 6 8
    3 ½ 8.5 0.94 5.5 4.81 1.25 1.25 — 8 0.75 0.62 7 11
    4 9 0.94 6.19 5.31 1.31 1.31 — 8 0.75 0.62 7.5 13
    5 10 0.94 7.31 6.44 1.44 1.44 — 8 0.88 0.75 8.5 15
    6 11 1 8.5 7.56 1.56 1.56 — 8 0.88 0.75 9.5 19
    8 13.5 1.12 10.62 9.69 1.75 1.75 — 8 0.88 0.75 11.75 30
    10 16 1.19 12.75 12 1.94 1.94 — 12 1 0.88 14.25 43
    12 19 1.25 15 14.38 2.19 2.19 — 12 1 0.88 17 64
    14 21 1.38 16.25 15.75 2.25 2.25 — 12 1.12 1 18.75 90
    16 23.5 1.44 18.5 18 2.5 2.5 — 16 1.12 1 21.25 98
    18 25 1.56 21 19.88 2.69 2.69 — 16 1.25 1.13 22.75 130
    20 27.5 1.69 23 22 2.88 2.88 — 20 1.25 1.12 25 165
    24 32 1.88 27.25 26.12 3.25 3.25 — 20 1.38 1.25 29.5 220

    CLASS 300 According to ASTM A/SA-105; ANSI B16.5

    Nominal

    Pipe

    Size

    Outside

    Diam. of

    Flange (O)

    Thick.

    of

    Flange (C)

    Diam.

    of

    Raised Face

    (R)

    Diam.

    of Hub

    at Base

    (X)

    Length

    thru Hub

    (Y)

    Min.

    Thread

    Length

    (T)

    Min.

    Counter Bore

    (Q)

    No. of

    Holes

    Diam. of

    Holes

    Diam.

    of Bolts

    Diam.

    of Bolt

    Circle

    Approx.

    Weight

    (in Pounds)
    1/2 3.75 0.56 1.38 1.5 0.88 0.62 0.93 4 0.62 0.5 2.62 2
    3/4 4.62 0.62 1.69 1.88 1 0.62 1.14 4 0.75 0.62 3.25 3
    1 4.88 0.69 2 2.12 1.06 0.69 1.41 4 0.75 0.62 3.5 3
    1 1/4 5.25 0.75 2.5 2.5 1.06 0.81 1.75 4 0.75 0.62 3.88 4
    1 1/2 6.12 0.81 2.88 2.75 1.19 0.88 1.99 4 0.88 0.75 4.5 6
    2 6.5 0.88 3.62 3.31 1.31 1.12 2.5 8 0.75 0.62 5 7
    2 1/2 7.5 1 4.12 3.94 1.5 1.25 3 8 0.88 0.75 5.88 10
    3 8.25 1.12 5 4.62 1.69 1.25 3.63 8 0.88 0.75 6.62 13
    3 1/2 9 1.19 5.5 5.25 1.75 1.44 4.13 8 0.88 0.75 7.25 17
    4 10 1.25 6.19 5.75 1.88 1.44 4.63 8 0.88 0.75 7.88 22
    5 11 1.38 7.31 7 2 1.69 5.69 8 0.88 0.75 9.25 28
    6 12.5 1.44 8.5 8.12 2.06 1.81 6.75 12 0.88 0.75 10.62 39
    8 15 1.62 10.62 10.25 2.44 2 8.75 12 1 0.88 13 58
    10 17.5 1.88 12.75 12.62 2.62 2.19 10.88 16 1.12 1 15.25 81
    12 20.5 2 15 14.75 2.88 2.38 12.94 16 1.25 1.12 17.75 115
    14 23 2.12 16.25 16.75 3 2.5 14.19 20 1.25 1.12 20.25 165
    16 25.5 2.25 18.5 19 3.25 2.69 16.19 20 1.38 1.25 22.5 190
    18 28 2.38 21 21 3.5 2.75 18.19 24 1.38 1.25 24.75 250
    20 30.5 2.5 23 23.12 3.75 2.88 20.19 24 1.38 1.25 27 315
    24 36 2.75 27.25 27.62 4.19 3.25 24.19 24 1.62 1.5 32 475

    CLASS 600 According to ASTM A/SA-105; ANSI B16.5

    Nominal

    Pipe

    Size

    Outside

    Diam. of

    Flange (O)

    Thick.

    of

    Flange

    (C)

    Diam.

    of

    Raised Face

    (R)

    Diam.

    of Hub

    at Base (X)

    Length

    thru Hub

    (Y)

    Min.

    Thread

    Length

    (T)

    Min.

    Counter

    Bore

    (Q)

    No. of

    Holes

    Diam. of

    Holes

    Diam. of

    Bolts

    Diam. of

    Bolt Circle

    Approx.

    Weight

    (in Pounds)
    1/2 3.75 0.56 1.38 1.5 0.88 0.62 0.93 4 0.62 0.5 2.62 2
    3/4 4.62 0.62 1.69 1.88 1 0.62 1.14 4 0.75 0.62 3.25 3
    1 4.88 0.69 2 2.12 1.06 0.69 1.41 4 0.75 0.62 3.5 4
    1 1/4 5.25 0.81 2.5 2.5 1.12 0.81 1.75 4 0.75 0.62 3.88 5
    1 1/2 6.12 0.88 2.88 2.75 1.25 0.88 1.99 4 0.88 0.75 4.5 7
    2 6.5 1 3.62 3.31 1.44 1.12 2.5 8 0.75 0.62 5 9
    2 1/2 7.5 1.12 4.12 3.94 1.62 1.25 3 8 0.88 0.75 5.88 13
    3 8.25 1.25 5 4.62 1.81 1.38 3.63 8 0.88 0.75 6.62 16
    3 1/2 9 1.38 5.5 5.25 1.94 1.56 4.13 8 1 0.88 7.25 21
    4 10.75 1.5 6.19 6 2.12 1.62 4.63 8 1 0.88 8.5 37
    5 13 1.75 7.31 7.44 2.38 1.88 5.69 8 1.12 1 10.5 63
    6 14 1.88 8.5 8.75 2.62 2 6.75 12 1.12 1 11.5 80
    8 16.5 2.19 10.62 10.75 3 2.25 8.75 12 1.25 1.12 13.75 115
    10 20 2.5 12.75 13.5 3.38 2.56 10.88 16 1.38 1.25 17 170
    12 22 2.62 15 15.75 3.62 2.75 12.94 20 1.38 1.25 19.25 200
    14 23.75 2.75 16.25 17 3.69 2.88 14.19 20 1.5 1.38 20.75 230
    16 27 3 18.5 19.5 4.19 3.06 16.19 20 1.62 1.5 23.75 330
    18 29.25 3.25 21 21.5 4.62 3.12 18.19 20 1.75 1.63 25.75 400
    20 32 3.5 23 24 5 3.25 20.19 24 1.75 1.62 28.5 510
    24 37 4 27.25 28.25 5.5 3.62 24.19 24 2 1.88 33 730

    CLASS 900According to ASTM A/SA-105; ANSI B16.5

    Nominal

    Pipe

    Size

    Outside

    Diam. of

    Flange (O)

    Thick.

    of

    Flange

    (C)

    Diam.

    of

    Raised Face

    (R)

    Diam.

    of Hub

    at Base

    (X)

    Length

    thru Hub (Y)

    Min.

    Thread

    Length

    (T)

    Min.

    Counter

    Bore

    (Q)

    No. of

    Holes

    Diam. of

    Holes

    Diam. of

    Bolts

    Diam. of

    Bolt Circle

    Approx.

    Weight

    (in Pounds)
    1/2 4.75 0.88 1.38 1.5 1.25 0.88 0.93 4 0.88 0.75 3.25 4
    3/4 5.12 1 1.69 1.75 1.38 1 1.14 4 0.88 0.75 3.5 5
    1 5.88 1.12 2 2.06 1.62 1.12 1.41 4 1 0.88 4 8
    1 1/4 6.25 1.12 2.5 2.5 1.62 1.19 1.75 4 1 0.88 4.38 9
    1 1/2 7 1.25 2.88 2.75 1.75 1.25 1.99 4 1.12 1 4.88 12
    2 8.5 1.5 3.62 4.12 2.25 1.5 2.5 8 1 0.88 6.5 25
    2 1/2 9.62 1.62 4.12 4.88 2.5 1.88 3 8 1.12 1 7.5 36
    3 9.5 1.5 5 5 2.12 1.62 3.63 8 1 0.88 7.5 26
    4 11.5 1.75 6.19 6.25 2.75 1.88 4.63 8 1.25 1.12 9.25 53
    5 13.75 2 7.31 7.5 3.12 2.12 5.69 8 1.38 1.25 11 83
    6 15 2.19 8.5 9.25 3.38 2.25 6.75 12 1.25 1.12 12.5 110
    8 18.5 2.5 10.62 11.75 4.00 2.50 8.75 12 1.5 1.38 15.5 170
    10 21.5 2.75 12.75 14.5 4.25 2.81 10.88 16 1.5 1.38 18.5 245
    12 24 3.12 15 16.5 4.62 3 12.94 20 1.5 1.38 21 325
    14 25.25 3.38 16.25 17.75 5.12 3.25 14.19 20 1.62 1.5 22 400
    16 27.75 3.5 18.5 20 5.25 3.38 16.19 20 1.75 1.63 24.25 425
    18 31 4 21 22.25 6 3.5 18.19 20 2 1.88 27 600
    20 33.75 4.25 23 24.5 6.25 3.62 20.19 20 2.12 2 29.5 730
    24 41 5.5 27.25 29.5 8 4 24.19 20 2.62 2.5 35.5 1400

    CLASS 1500 According to ASTM A/SA-105; ANSI B16.5

    Nominal

    Pipe

    Size

    Outside

    Diam. of

    Flange (O)

    Thick.

    of

    Flange

    (C)

    Diam.

    of

    Raised Face

    (R)

    Diam.

    of Hub

    at Base

    (X)

    Length

    thru Hub

    (Y)

    Min.

    Thread

    Length

    (T)

    Min.

    Counter

    Bore

    (Q)

    No. of

    Holes

    Diam. of

    Holes

    Diam. of

    Bolts

    Diam. of

    Bolt Circle

    Approx.

    Weight

    (in Pounds)
    1/2 4.75 0.88 1.38 1.5 1.25 0.88 0.93 4 0.88 0.75 3.25 4
    3/4 5.12 1 1.69 1.75 1.38 1 1.14 4 0.88 0.75 3.5 5
    1 5.88 1.12 2 2.06 1.62 1.12 1.41 4 1 0.88 4 8
    1 1/4 6.25 1.12 2.5 2.5 1.62 1.19 1.75 4 1 0.88 4.38 9
    1 1/2 7 1.25 2.88 2.75 1.75 1.25 1.99 4 1.12 1 4.88 12
    2 8.5 1.5 3.62 4.12 2.25 1.5 2.5 8 1 0.88 6.5 25
    2 1/2 9.62 1.62 4.12 4.88 2.5 1.88 3 8 1.12 1 7.5 36

    Standard

    Standard Specification
    ASTM A105 Standard Specification for Carbon Steel Forgings for Piping Applications
    ASTM A350 Standard Specification for Carbon and Low-Alloy Steel Forgings, Requiring Notch Toughness Testing for Piping Components
    ASTM A182 Standard Specification for Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service
    ASTM A404 Specification for Forged or Rolled Alloy Steel Pip Flanges, Forged Fittings, and Valves and Parts Specially Heat Treated for High-Temperature Service (Withdrawn 1974)
    ASTM A234 Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service
    ASTM A420 Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service
    ASTM A403 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
    ASTM A694 Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service

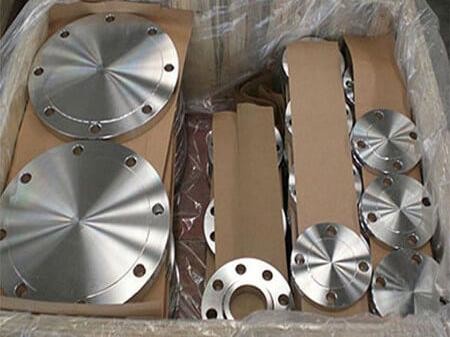

    Package

    1/2 Inch - 48 Inch Pipe Flanges Welding Neck / Slip On / Socket Welding Flange1/2 Inch - 48 Inch Pipe Flanges Welding Neck / Slip On / Socket Welding Flange
