    API 5CT Casing Pipe H40 J55 K55 N80 L80 C90 T95 P110 Steel Well Casing Pipe

    Ask Lasest Price
    Brand Name : Sindara
    Certification : ISO 9001, ISO 14001, ISO 45001, CE
    Payment Terms : L/C, T/T, D/P
    Supply Ability : 500 tons per day
    Delivery Time : within 10-30 days and depend on your order quantity
    • Product Details
    • Company Profile

    API 5CT Casing Pipe H40 J55 K55 N80 L80 C90 T95 P110 Steel Well Casing Pipe

    Description
    ProductWell casing, API 5CT Casing, API 5CT Casing Pipe
    ApplicationOil well casing serves as well sidewall
    Pipe StandardAPI SPEC 5CT
    SizeOD: 114.3-508mm
    WT: 5.21-16.13mm
    Thread typesSTC, LTC, BTC, special clearance, premium connection
    Packing:Protection Caps in Both Ends, Waterproof Paper Wrapped, Two Tags

    What is API 5CT casing ?

    API SPEC 5CT well casing is utilized in fixing the well wall or down hole, which has wider diameters. API SPEC 5CT can be divided into conductor casing, technical casing and oil casing.


    API 5CT is standard technical specifications for steel casing pipes used for oil wells in petroleum and natural gas industries.


    Common Grades

    • J55/K55

    • N80/N80Q/L80

    • C90

    • R95/T95

    • P110/C110

    • Q125


    Connections

    API 5CT is applicable to following connections which complied with API SPEC 5B:

    • SC: Short round thread casing

    • LC: Long ound thread casing

    • BC: Buttress thread casing

    • NU: Non-upset tubing

    • EU: External upset tubing

    • IJ: Integral tubing connections


    More casing pipes and their colors


    Lengths:

    Oil CasingRange 1Range 2Range 3
    4.88~7.627.62~10.3610.36~14.63

    Dimension:

    LabelsOutside diameter DNominal linear mass T&CWall thickness tJ55N80L80C90P110Q125
    mmkg/mmmK551/Q?T95
    1234567891011
    4 1/29.5114.314.145.21PS-----
    4 1/210.5114.315.635.69PSB-----
    4 1/211.6114.317.266.35PSLBPLBPLBPLBPLB-
    4 1/213.5114.320.097.37-PLBPLBPLBPLB-
    4 1/215.1114.322.478.56----PLBPLB
    511.512717.115.59PS-----
    51312719.356.43PSLB-----
    51512722.327.52PSLBEPLBEPLBEPLBEPLBE-
    51812726.799.19-PLBEPLBEPLBEPLBEPLBE
    521.412731.8511.1-PLBPLBPLBPLBPLB
    523.212734.5312.14-PLBPLBPLBPLBPLB
    524.112735.8612.7-PLBPLBPLBPLBPLB
    5 1/214139.720.836.2PS-----
    5 1/215.5139.723.076.98PSLBE-----
    5 1/217139.725.37.72PSLBEPLBEPLBEPLBEPLBE-
    5 1/220139.729.769.17-PLBEPLBEPLBEPLBE-
    5 1/223139.734.2310.54-PLBEPLBEPLBEPLBEPLBE
    5 1/226.8139.739.8812.7---P--
    5 1/229.7139.744.214.27---P--
    5 1/232.6139.748.5115.88---P--
    5 1/235.3139.752.5317.45---P--
    5 1/238139.756.5519.05---P--
    5 1/240.5139.760.2720.62---P--
    5 1/243.1139.764.1422.22---P--
    6 5/820168.2829.767.32PSLB-----
    6 5/824168.2835.728.94PSLBEPLBEPLBEPLBEPLBE-
    6 5/828168.2841.6710.59-PLBEPLBEPLBEPLBE-
    6 5/832168.2847.6212.06-PLBEPLBEPLBEPLBEPLBE
    717177.825.35.87------
    720177.829.766.91PS-----
    723177.834.238.05PSLBEPLBEPLBEPLBE--
    726177.838.699.19PSLBEPLBEPLBEPLBEPLBE-
    729177.843.1610.36-PLBEPLBEPLBEPLBE-
    732177.847.6211.51-PLBEPLBEPLBEPLBE-
    735177.852.0912.65-PLBEPLBEPLBEPLBEPLBE
    738177.856.5513.72-PLBEPLBEPLBEPLBEPLBE
    742.7177.863.5415.88---P--
    746.4177.869.0517.45---P--
    750177.874.5619.05---P--
    753.6177.879.7720.62---P--
    757.1177.884.9722.22---P--
    7 5/824193.6835.727.62------
    7 5/826.4193.6839.298.33PSLBEPLBEPLBEPLBE--
    7 5/829.7193.6844.29.52-PLBEPLBEPLBEPLBE-
    7 5/833.7193.6850.1510.92-PLBEPLBEPLBEPLBE-
    7 5/839193.6858.0412.7-PLBEPLBEPLBEPLBEPLBE
    7 5/842.8193.6863.6914.27-PLBPLBPLBPLBPLB
    7 5/845.3193.6867.4115.11-PLBPLBPLBPLBPLB
    7 5/847.1193.6870.0915.88-PLBPLBPLBPLBPLB
    7 5/851193.6876.1917.45---P--
    7 5/855.3193.6882.319.05---P--
    8 5/824219.0835.726.71PS-----
    8 5/828219.0841.677.72------
    8 5/832219.0847.628.94PSLBE-----
    8 5/836219.0853.5710.16PSLBEPLBEPLBEPLBE--
    8 5/840219.0859.5311.43-PLBEPLBEPLBEPLBE-
    8 5/844219.0865.4812.7-PLBEPLBEPLBEPLBE
    8 5/849219.0872.9214.15-PLBEPLBEPLBEPLBEPLBE
    9 5/832244.4848.077.92------
    9 5/836244.4853.578.94PSLB-----
    9 5/840244.4859.5310.03PSLBEPLBEPLBEPLBE--
    9 5/843.5244.4864.7311.05-PLBEPLBEPLBEPLBE-
    9 5/847244.4869.9411.99-PLBEPLBEPLBEPLBEPLBE
    9 5/853.5244.4879.6213.84-PLBEPLBEPLBEPLBEPLBE
    9 5/858.4244.4886.9115.11-PLBPLBPLBPLBPLB
    9 5/859244.4888.415.47---P--
    9 5/864.9244.4896.5817.07---P--
    9 5/870.3244.48104.6218.64---P--
    9 5/875.6244.48112.520.24---P--
    10 3/432.75273.0548.747.09------
    10 3/440.5273.0560.278.89PSB-----
    10 3/445.5273.0567.7110.16PSBE-----
    10 3/451273.0575.911.43PSBEPSBEPSBEPSBEPSBE-
    10 3/455273.0582.5912.57-PSBEPSBEPSBEPSBE-
    10 3/460.7273.0590.3313.84---PSBEPSBEPSBE
    10 3/465.7273.0597.7715.11---PSBPSBPSB
    10 3/473.2273.05108.9317.07---P--
    10 3/479.2273.05117.8618.64---P--
    10 3/485.3273.05126.9420.24P
    11 3/442298.4562.58.46------
    11 3/447298.4569.949.53PSB-----
    11 3/454298.4580.3611.05PSB-----
    11 3/460298.4589.2912.42PSBPSBPSBPSBPSBPSB
    11 3/465298.4596.7313.56-PPPPP
    11 3/471298.45105.6614.78-PPPPP
    13 3/848339.7271.438.38------
    13 3/854.5339.7281.19.65PSB-----
    13 3/861339.7290.7810.92PSB-----
    13 3/868339.72101.1912.19PSBPSBPSBPSBPSB-
    13 3/872339.72107.1513.06-PSBPSBPSBPSBPSB
    1665406.496.739.53------
    1675406.4111.6111.13PSB-----
    1684406.4125.0112.57PSB-----
    16109406.4162.2116.66PPP-PP
    18 5/887.5473.08130.2111.05PSB-----
    2094508139.8911.13PSLB-----
    20106.5508158.4912.7PSLB-----
    20133508197.9316.13PSLB-----
    P——Plain end; S——Short round thread;L——Long round thread;B——Buttress thread;E——Extreme line.

    Mechanical Properties:

    GroupGradeTypeTotal elongation under load %Yield strength MpaTensile strength min MPaHardness max
    minmaxHRCHBW
    123456789
    1J55-0.5379552517--
    K55-0.5379552655--
    N8010.5552758689--
    N80Q0.5552758689--
    2L8010.555265565523241
    L809Cr0.555265565523241
    L8013Cr0.555265565523241
    C901?20.562172468925.4255
    C95-0.5655758724--
    T951?20.565575872425.4255
    3P110-0.6758965862--
    4Q125All0.658621034931--

    Standard

    API Spec 5CT – Specification 5CT/ISO 11960, Specification for Casing and Tubing, Eighth Edition, Petroleum and natural gas industries-Steel pipes for use as casing or tubing for wells

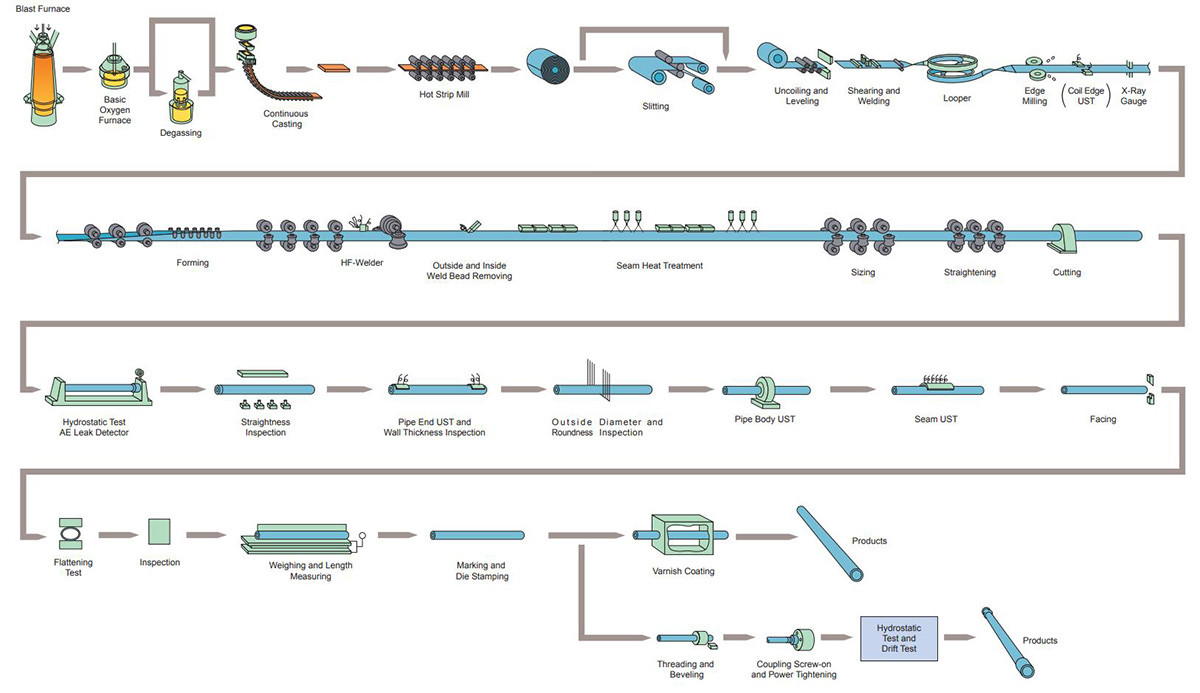

    Process

    API 5CT Casing Pipe H40 J55 K55 N80 L80 C90 T95 P110 Steel Well Casing Pipe


    Packing

    API 5CT Casing Pipe H40 J55 K55 N80 L80 C90 T95 P110 Steel Well Casing Pipe
