High Temperature Seamless Steel Pipe ASTM A106 / A179 / A210 / A213 / A335 Boiler Tube

Description

Product:	Seamless boiler pipe, Heat exchanger tubes, Tubes for boiler and high temperature
Application:	Used for superheated pipelines, steam pipeline, boiling water tube
Size:	OD: 13.72-914.4mm
	WT: 1.65-22mm
	LENGTH: 0.5mtr-20mtr
Pipe Standard:	ASTM A192 ASTM A179 ASTM A556 ASTM A210
	EN10216/BS3059
	JIS G3454/G3456/G3461
Marking:	According to standard or per customer request
Mill test report:	Mill test reports are issued to customer requirements. Usually they comply with DIN 50049, EN 10204
	ASME SA-106B ASME SA-106B ASME SA-192 ASME SA-210A1 ASME SA106C ASME SA-210C DIN PH265GH DIN P195GH DIN P235GH DIN St35.8 DIN St45.8

What are Boiler tubes?

Boiler tubes are seamless tubes and are made of either carbon steel or alloy steel. They are widely used in steam boilers, for power generation, in fossil fuel plants, industrial processing plants, electric power plants, etc.

Boiler tubes can either be medium-pressure boiler pipes or high-pressure boiler pipes. Boiler tubes are often manufactured in seamless procedures.

Boiler pipes refers to steel that is open at both ends and has a hollow section. Boiler and heat exchange tubes must be temperature and pressure resistant. For specific applications, they even need to increase or reduce heat transmission.

Standard Boiler Pipes & Tubes Standard & Grades

A/SA 179 low carbon steel;

A/SA 192 Carbon Steel;

A/SA 210 Grades A1, C;

A/SA 556 Grades B2, C2;

BS3059

JIS G3454 Grades STPG 370, STPG 410

JIS G3456 Grades STPT 370, STPT 410, STPT 480

JIS G3461 Grades STB 340 , STB410, STB510

EN 10216-2 Grades P195GH, P235GH, P265GH, 16Mo3, 10CrMo5-5, 13CrMo4-5, 10CrMo9-10, X10CrMoVNb9-1

Boiler tubing is used in these industries:

Steam Boilers

Fossil Fuel Plants

Heat Exchangers

Electric Power Plants

Cogeneration Facilities

Air Preheater Unit

Waste Heat Plants

Power Generation

Economiser etc

How to Choose Good Quality Boiler Tubes?
While choosing boiler tubes, look for the following to pick out the right and good quality tubes:

1. Look at the cross-section of the tube. A good quality seamless tube will have a smooth cross-section and will be devoid of bumps and irregularities.

2. Check the density of the pipe to understand the percentage of impurities in the pipe. If the pipe shows low density, steer clear!

3. Make sure you check the trademark. Reputed manufacturers always put their trademark on their seamless tubes.

4. Check the surface of the boiler tube. A good quality boiler tube will have a smooth surface. If you find the surface to be rough and uneven, you can be sure that the quality is not up to the mark.

Specification

Standard	Outside Diameter	Wall Thickness	Weight
ASTM A 106 NF A 49-211	OD≤48.3; ±0,40mm 48.3<OD≤114.3; ±0.8mm 114.3<OD≤219.1; +1.6/-0.8mm OD>219.1; +2.4/-0.8mm	+12.5%	+10/-3.5% for any length of pipe
EN 10216-2 hot rolled	±1.0% or ±0.5mm (which is higher)	±12.5% or ±0.4mm (which is higher)
DIN 17175 hot rolled	OD<=100 ± 0.75% (minimum±0.5mm) 100<OD<=320 ±0.9%	OD <=130; WT≤ 2Sn; +15/-10% OD <=130; 2Sn<WT≤4Sn; +12.5/-10% OD <=130; WT>4Sn; ±9% 130<OD<=320; WT ≤0.05OD; +17.5/-12.5% 130<OD<=320; 0.05OD <WT≤0.11OD; ±12.5% 130<OD<=320; WT>0.11OD; ±10% Sn- Nominal wall thickness according to DIN 2448	+10/-8% for each tube ±7.5% for a lots over 10t
ASTM A210 hot rolled	OD<=101.6+0.4/-0.8mm 101.6<OD<=190.5+0.4/-1.2mm 190.50<OD<=228.6+0.4/-1.6mm	OD<=101.6 and WT<=2.4; +40%/0 OD<=101.6 and 2.4<WT<=3.8; +35%/0 OD<=101.6 and 3.8 <WT<=4.6; +33%/0 OD<=101.6 and WT>4.6; +28%/0 OD>101.6 and 2.4<WT<=3.8; +35%/0 OD>101.6 and 3.8 <WT<=4.6; +33%/0 OD>101.6 and WT>4.6; +28%/0	+16%/0
ASTM A213 hot rolled	OD≤100mm: +0.4mm / -0.8 mm 100<OD ≤ 200mm: +0.4 /- 0.8 mm 200<OD ≤ 225mm: +0.4mm /-1.6 mm	Average wall thickness: 10.3<WT≤73mm: +20%/-12.5% WT<73 mm & (WT/OD)≤5%: +22.5%/-12.5% WT<73 mm & (WT/OD)>5%: +15%/-12.5% Minim wall thickness: WT ≤ 2.4 mm (only for OD ≤ 114.3 mm): + 40 % / -0% 2.4<WT≤3.8 mm: +35 %/-0% 3.8<WT≤4.6 mm: +33% / -0% WT>4.6 mm: +28% / -0%	–
ASTM A213 Cold finished	OD ≤25: +0.10 mm/-0.11 mm 25<OD ≤40mm: ±0.15 mm 40<OD <50mm: ±0.20 mm 50≤OD < 65mm: ±0.25 mm 65≤OD < 75 mm: ±0.30 mm 75≤OD ≤100 mm: ±0.38 mm 100<OD ≤200mm:+0.38/-0.64 mm 200<OD ≤225mm:+0.38 /-1.14 mm	Average wall thickness: ±10% Minim wall thickness: For OD ≤38.1mm => WT = +20% / -0 For OD >38.1mm => WT= +22% / -0
ASTM A335 hot rolled	For pipe ordered to NPS [DN] or outside diameter: 10.3<OD≤48.3mm: ±0.4 mm 48.3<OD ≤114.3mm: ± 0.8 mm 114.3<OD≤219.1 mm:+1.59 /-0.79mm 219.1<OD≤323.9mm:+2.38 mm /-0.79mm For pipe ordered to inside diameter: ±1%	10.3<WT≤73mm: +20%/-12.5% WT<73 mm & (WT/OD)≤5%: +22.5%/-12.5% WT<73 mm & (WT/OD)>5%: +15%/-12.5%
DIN 17175 cold rolled	OD<=120± 0.6%(minimum±0.25mm) OD>120±0.75%	OD <=130; WT≤ 2Sn; +15/-10% OD <=130; 2Sn<WT≤4Sn; +12.5/-10% OD <=130; WT>4Sn; ±9% 130<OD<=320; WT ≤0.05OD; +17.5/-12.5% 130<OD<=320; 0.05OD <WT≤0.11OD; ±12.5% 130<OD<=320; WT>0.11OD; ±10% Sn – Nominal wall thickness according to DIN 2448	+10/-8% for each tube ±7.5% for a lots over 10t
EN 10216-2 cold rolled	±0.5% or ±0.3mm (which is higher)	±10% or ±0.2 mm (which is higher)
ASTM A179 and ASTM A210 cold rolled	OD<25.4; ±0.10 25.4<=OD<=38.1; ±0.15 38.1<OD<50.8; ±0.20 50.8>=OD<63.5; ±0.25 63.5>=OD<76.2; ±0.30	OD<=38.1; +20% OD>38.1; +22%	OD<=38.1; +12% OD>38; +13%

Chemical Composition (%)


Steel Group	C	Si	Mn	P max	S max	Cr	Mo	Ni	Sn
Grade A, TU E275	max 0.25	min 0.10	0.27÷0.93	0.035	0.035
Grade B	max 0.30	min 0.10	0.29÷1.06	0.035	0.035
St35.8, TU E220	max 0.17	0.10÷0.35	0.40÷0.80	0.040	0.040
St45.8, TU E250	max 0.21	0.10÷0.35	0.40÷1.20	0.040	0.040
P195GH	max.0.13	max.0.35	max.0.70	0.025	0.020	max 0.30	max 0.08	max 0.30
P235GH	max.0.16	max.0.35	max.1.20	0.025	0.020	max 0.30	max 0.08	max 0.30
P265GH	max.0.20	max0.40	max.1.40	0.025	0.020	max 0.30	max 0.08	max 0.30
16Mo3	0.12÷0.20	max0.35	0.40÷0.90	0.025	0.020	max 0.30	0.25÷0.35	max.0.30
13CrMo4-5	0.10÷0.17	max0.35	0.40÷0.70	0.025	0.020	0.70 ÷1.15	0.40÷0.60	max.0.30
10CrMo9-10	0.08-0.14	max 0.50	0.30÷0.70	0.020	0.010	2.0 ÷2.50	0.90÷1.10	max.0.30
ASTM A179	0.06÷0.18	–	0.27÷0.63	0.035	0.035
Grade A-1	max0.27	min. 0.10	max. 0.93	0.035	0.035
T11	0.05-0.15	0.30-0.60	0.30-0.60	0.025	0.025	1.00-1.50	0.44-0.65
T22	0.05-0.15	0.30-0.60	0.30-0.60	0.025	0.025	1.90-2.60	0.87-1.13
P5	max. 0.15	max. 0.50	0.30-0.60	max. 0.025	0.025	4.00-6.00	0.45-0.65
P11	0.05-0.15	0.50-1.00	0.30-0.60	max. 0.025	max. 0.025	1.00-1.50	0.44-0.65
P22	0.05-0.15	max. 0.50	0.30-0.60	max. 0.025	max. 0.025	1.90-2.60	0.87-1.13

Mechanical Properties

Steel Group	Yield Strength, min.	Tensile Strength	Elongation	Impact
Steel Group	N/mm²	N/mm²	min. (%)	J	(°C)
Grade A, TU E275	205	min. 330	Calculation acc. to
Grade B	240	min 415	the wall thickness
St35.8, TU E220	235	360÷480	25
St45.8, TU E250	255	410÷530	21
P195GH	195	320÷440	27	28	-10
P235GH	225	360÷500	25	28	-10
P265GH	255	410÷570	23	28	-10
16Mo3	270	450÷600	22	40	20
13CrMo4-5	290	440÷590	22	40	20
10CrMo9-10	280	480÷630	22	40	20
ASTM A179	180	325	36	HRB = max 72
Grade A-1	255	415	30	HRB = max 79
T11	205	415	30	85HRB/250HBW/170HV
T22	205	415	30	85HRB/250HBW/170HV
P5	205	415	30
P11	205	415	30	–
P22	205	415	30	–

Standard

A179	Standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
A192	Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
A210	Standard Specification for Seamless Medium-Carbon Steel Boiler and Super heater Tubes
A556	Specification for Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes

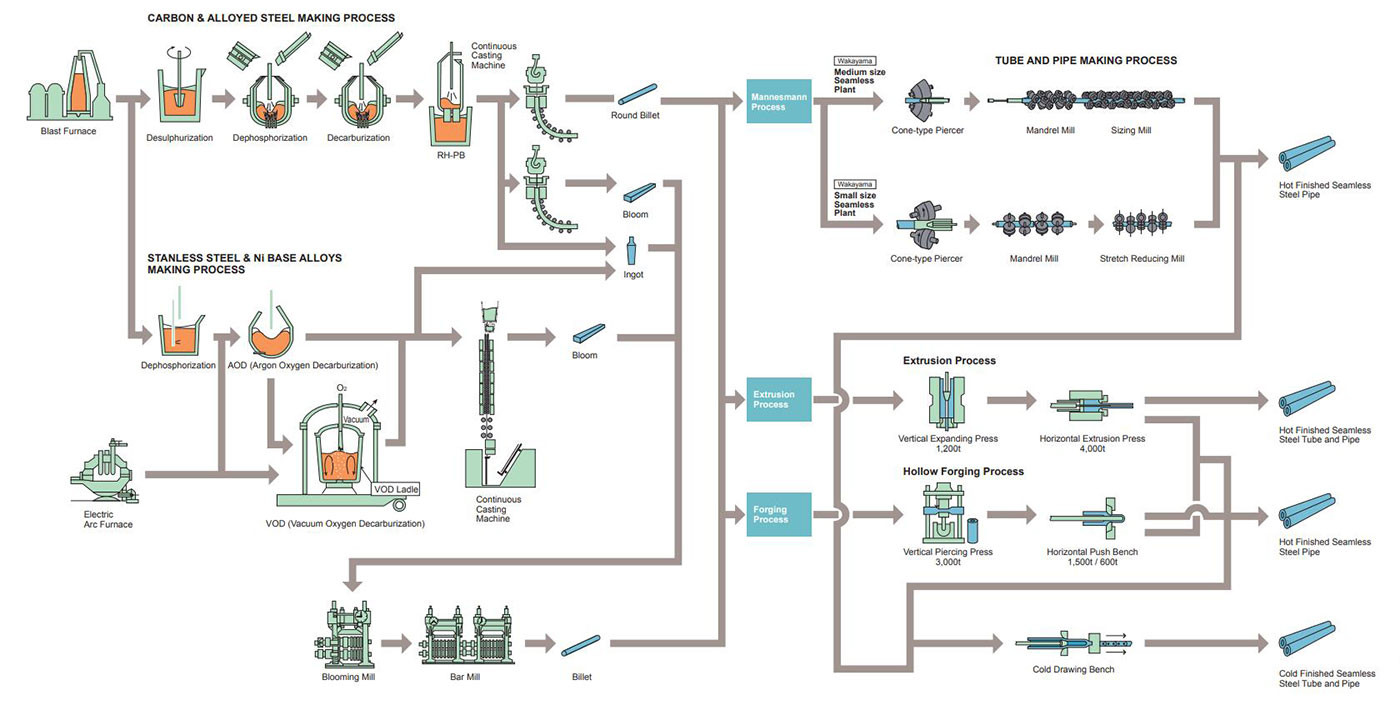

Process

High Temperature Seamless Steel Pipe ASTM A106 / A179 / A210 / A213 / A335 Boiler Tube
