Description

Product Name: 3LPE Coated Pipe, 3PE Coating Pipe, Anti Corrosion Steel Pipe

Coating Type: 3 Layer Polyethylene

OD: 25 mm to 3000 mm

WT: SCH5S to SCH160, XXS

Length: Up to 12m

Connection: Weld And Thread

Standard: ANSI, JIS, DIN, EN, ISO,DIN;CAN/CSA,NFA

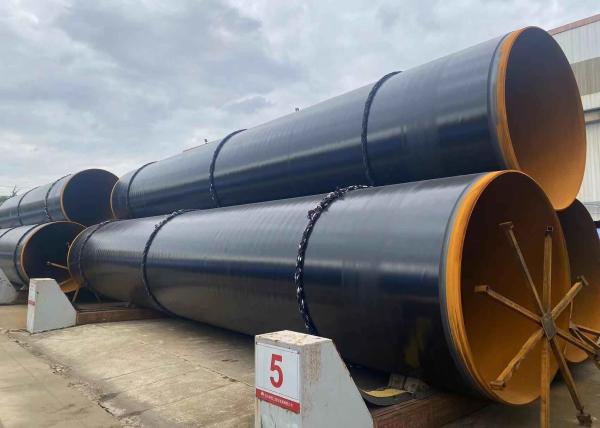

What is 3LPE coated pipe?

3LPE Coated Pipes consist of 3 layers for pipeline coating.

Layer 1 consists of Fusion Bonded Epoxy. This later protects against corrosion and is fusion bonded with the blasted steel surface.

Layer 2 is a copolymer adhesive that has excellent chemical bonding to the inner layer and the top layer of polyethylene.

Layer 3 is the layer of polyethylene used for protection against any physical damage to the pipes.

Thickness of 3LPE Coating on Steel Pipes

minimum 125 um Epoxy layer thickness
minimum 150 um copolymer layer thickness
minimum thickness of 1.8 mm to 4.7 mm polyethylene or polypropylene layer

Moreover, 3PE can strengthen the pipeline’s mechanical properties, high electrical resistance, waterproof, and wearable, anti-aging. It could protect pipe from the heat loss which only account for 1/4 of pipe. 3PE coating pipe integrated with the advantages of FBE and the PE. This is getting more and more widely used in buried pip

Features of 3LPE Coated Pipe

- Good Impact Resistance
- Good Abrasive Resistance
- Good Shock Resistance
- Good Acid Resistance
- High Quality
- Long Service Life

Application of 3LPE Coated Pipe

- Transferring natural gas, crude oil and refined oil product over long distance

- Urban fuel gas piping system

- Storage tanks and groove piping system

- Protecting pipe in electricity and communication industries and water piping systems

Specification

Standard

Qualified Standard

GB/T3091 Welded steel pipe for low pressure liquid delivery

GB/T9711 Petroleum and natural gas industries--Steel pipe for pipelines

IS: 3589 Steel tubes for water and sewage

IS : 1978-1982:Steel tubes for use in transportation of oil; gas & Petroleum products

ASTM A53 Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless

DIN 2458 WELDED STEEL PIPES AND TUBES

EN10217 Welded steel tubes for pressure purposes. Technical delivery conditions.

Non-alloy steel tubes with specified room temperature properties

API 5L Line Pipe

SY/T5037 Spiral submerged arc-welded steel pipe for pipelines for low pressure field fluid service

SY/T 5040 Spiral submerged arc-welded steel pipe piles

CJ/T 3022 Spiral submerged-arc welded steel pipe for municipal heat supply

IS : 1978 Steel tubes for use in transportation of oil; gas & Petroleum products

ASTM A252 WELDED AND SEAMLESS STEEL PIPE PILES

Coating Standard

ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water

ISO 21809 Petroleum and natural gas industries -- External coatings for buried or submerged pipelines used in pipeline transportation systems

DIN 30670 Polyethylen coatings of steel pipes and fittings

3LPE/3LPP
2LPE/2LPP
DIN30670-1991
CSA Z245
CAN Z245
GB/T23257-2009
ISO21809-1-2009
SY/T 0413-2002
SY/T 0315-2002
SY/T 0315-2005
AWWA C213-2001
CAN/CSAZ245.20-2010
ISO218909-2-2007
API RP5L9-2001
AWWAC213-2001

Process

Hunan Dingchen Pipe Industry Co., Ltd. is a professional factory integrating steel pipe, pipe fittings and valve production and R&D. The factory also covers various types of pipes and pipe fittings valve inventory, logistics and related supporting services, and is committed to providing global customers with one-stop services for pipes, pipe fittings and valves. The registered capital is 108.8 million yuan, and it is located in the hometown of the great man-Jingwei Road, Jiuhua Industrial Park, Xiangtan, Hunan. After years of unremitting efforts and innovative business models, it has created product brands and effectively promoted industrial development. It has become a well-known comprehensive steel industry manufacturer in China and a world-leading comprehensive service provider for pipes, pipe fittings and valves. By the end of 2023, the company's total assets exceeded more than 2 billion yuan, annual operating income exceeded more than 500 million yuan, and the total number of employees was more than 300. It has 3 subsidiaries, 5 production bases, and three R&D centers. It is one of the top 500 private enterprises in China, a national technology innovation enterprise, a national key high-tech enterprise, a national green demonstration factory, and a national AAA-level quality credit enterprise.

The factory has leading domestic and foreign steel pipe production and R&D technology, advanced and complete testing facilities and equipment. The factory strictly follows the ISO 9001 quality management system for on-site management and has successively obtained ISO 9001, ISO 14001, ISO 45001, AAA credit rating certification etc. The products have been inspected and recognized by international authoritative third-party organizations such as SGS, BV, MOODY, TUBOSCOPE etc.

Sindara Steel Co., Ltd. is a professional export subsidiary corporation of Hunan Dingchen Pipe Industry Co., Ltd., dedicated to providing pipe, pipe fittings and valve product services to global customers. Over the years, Sindara Steel Company's products have been widely used in urban pipeline construction, construction, pipeline transportation, coastal and port construction, oil and gas extraction, food and medicine factory construction and other engineering projects. Partners are spread across dozens of countries and regions in Southeast Asia, the Middle East, Europe, Africa, South America, and Oceania, providing products and services to many Fortune 500 companies oil, gas and EPC companies, such as: PEMEX, EGPC, NNPC, etc.

Sindara Steel always adheres to the business beliefs of quality first and customer-centric, and strives to meet customer requirements and pursue win-win cooperation with customers. Sindara Steel is your trusted one-stop supplier of pipes and pipe accessories.
